XT500 Side Covers - Designs & Shapes

The side covers of the German XT500 can be divided into two standard groups: The side covers of the steel tank XTs up to model year 1979 in white in a large basic shape and the side covers of the aluminum tank XTs from model year 1980 in black in a small basic shape. The right-hand side cover always has a straight end for the flame pot and a pin bolt with a slot for locking, the left-hand side cover has a lock for locking with a key.

The side covers of the TT500 are also available in two designs: the early large basic design in the colors Clean White (1976), El Torro Orange (1977) and Competition Yellow (1978) and the late small basic design in the colors New El Toro Orange (1979), Yamaha Black (1980) and Clean White (1981). In contrast to the XT500, these side covers use a pin bolt on both sides to close them. On the TT500, the right-hand side cover is rounded towards the silencer from 1977 onwards, as a silencer without a flame pot was fitted in these model years. In 1976, both the TT500 and the XT500 had the lower exhaust pipe and the right-hand cover with a straight end.

In our range we also have the American versions of the design up to 1979 in Ginger Brown and both designs in Crystal Silver as well as the side covers of the XT500S from 1988 in Shiny Black.

As a replacement for the lock in the left side cover, we offer the keyless version Lockbuster.

If an accessory muffler without a flame pot (e.g. Sebring or TT replica muffler) is fitted, the TT500 side cover corresponding to the year of manufacture can be used on the right-hand side. If no side cover lock is required, the relevant TT side cover can also be used on the left-hand side.

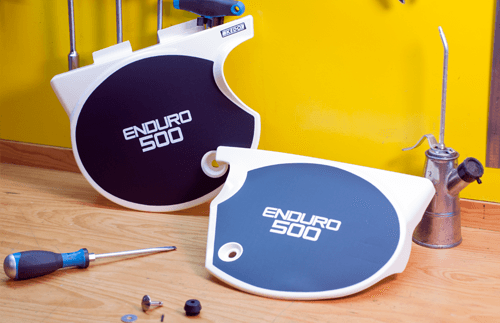

This product collection shows the side covers and the decal that was originally installed in this model year. You can, of course, use any other decal to suit your taste, it just has to match the shape (design up to 1979 or design from 1980 onwards) of your side covers. The differences between the side cover decals correspond to the differences between the side covers, which can be clearly seen here in the shape of the lock recess (stickers up to 1979 are closed around the hole).

Filter
Set Descending Direction

15 Items

per page
  1. Product SKU:
    29299

    Replica Side Cover, Left, White (without Decal) (OEM Reference# 1E6-21711-00)
    Usage:
    XT500-'79
    €44.90
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  2. Product SKU:
    29300

    Replica Side Cover, Right, White (without Decal) (OEM Reference# 583-21721-00)
    Usage:
    TT500'76, XT500'76-'79
    €44.90
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  3. Product SKU:
    21060E

    Side Cover Decal Set 'Enduro 500' Right & Left, White Lettering
    Usage:
    XT500-'79
    €19.50
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  4. Product SKU:
    21105

    Decal 'Battery Polarity' at inside of LH side cover
    Usage:
    TT500, XT500
    €5.95
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  5. Product SKU:
    21107RP

    Replica Side Cover Lock, incl. Nut, without Side Cover Rubber Grommet
    Usage:
    XT500
    €28.50
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  6. Product SKU:
    21288

    Stainless Steel Locking Pin for Side Cover incl. Small Parts, Complete
    Usage:
    TT500 LH/RH, XT500 RH
    €12.50
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  7. Product SKU:
    21109

    Locking Pin for Side Cover/Toolbox (OEM)
    Usage:
    TT500, XT500
    €8.05
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  8. Product SKU:
    21110

    Washer for Side Cover/Toolbox, OEM reference # 90201-06063
    Usage:
    TT500, XT500
    €0.50
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  9. Product SKU:
    21104

    Cotter Pin for Side Cover/Toolbox (fits pin bolt and side cover lock left)
    Usage:
    TT500, XT500
    €0.75
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  10. Product SKU:
    21111

    Rubber Damper, e.g. between frame/side cover (oval), 1 piece OEM reference# 90480-01176
    Usage:
    TT500-'78, XT500-'79, XT600E/K, RD500'85, FZR250,
    €5.51
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
  11. Product SKU:
    21108

    Rubber Damper Side Cover Lock
    Usage:
    XT500
    €5.42
    Incl. 19% VAT,excl. Shipping Cost
    Add to Wish List
