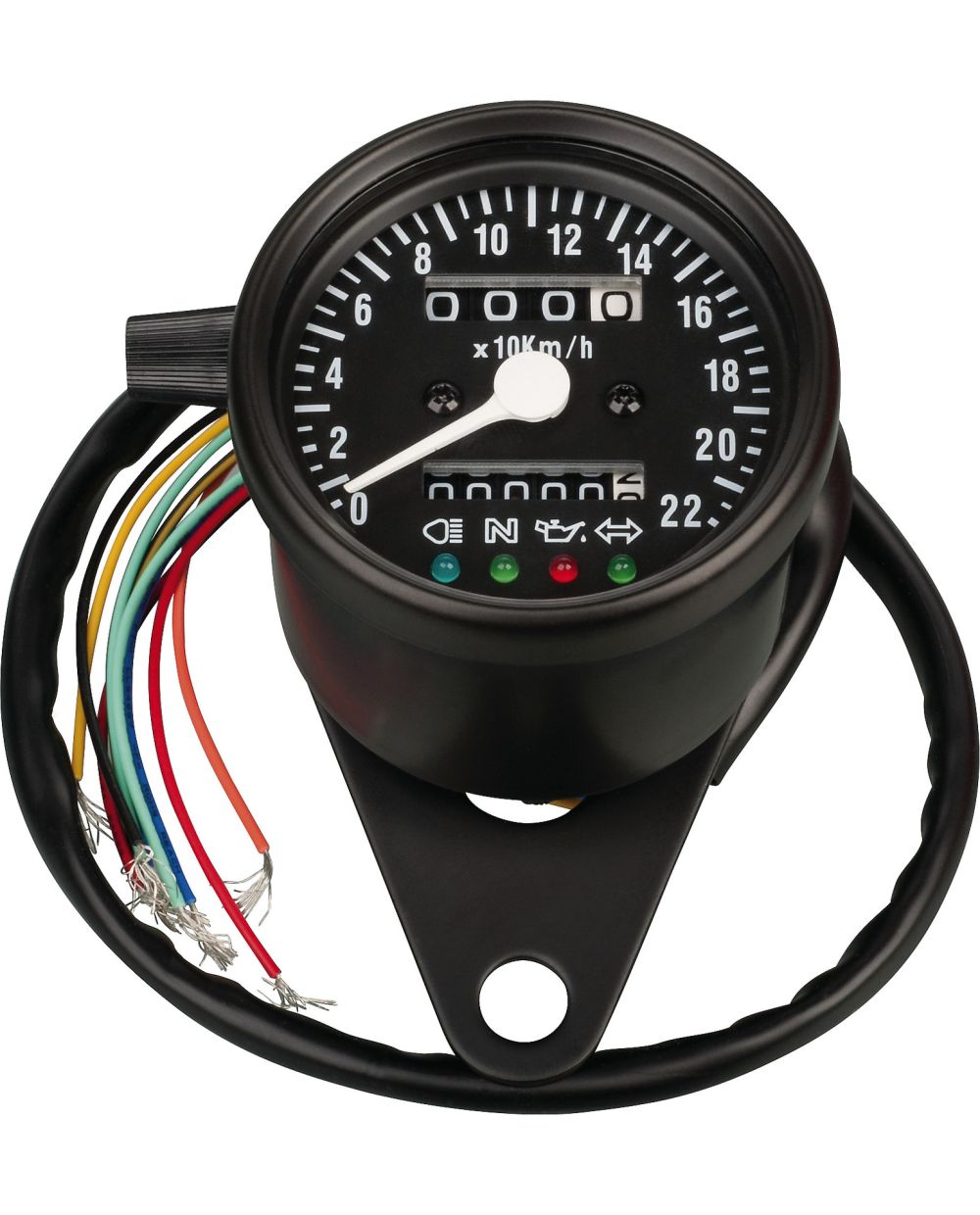

Analog Speedometer, mechanical drive with M12x1 connection, trip odometer, high beam, neutral, oil pressure control and indicator light, 220km/h

Analogue Speedometer 60mm

absolutely shapely, high quality workmanship, matt black lacquered stainless steel case

• Installation diameter 60mm
• Scale up to 220km/h
• Height without cable 53mm
• Speedometer shaft connection M12x1 (suitable for almost all models)
• square connection for shaft approx. 2,5×2,5 mm
• k-value: 1,4
• Trip meter, high beam, neutral, oil pressure control and indicator light

Mounting information

If you are not sure of the gear ratio of your motorbike, you can find out for yourself whether this instrument will indicate the speed correctly.

The K-value can be determined as follows: Measure the circumference of the wheel (using a tape measure or by rolling it). Unscrew the shaft from the speedometer. Make 10 revolutions with the wheel, counting the revolutions of the square edge that is now visible.

Calculation: K=10 x number of revolutions of the square divided by the circumference of the wheel in cm. Round the result to one decimal place (there are actually only tachometers with the K values 1.0 and 1.4).
