Item Number
KTH-10057

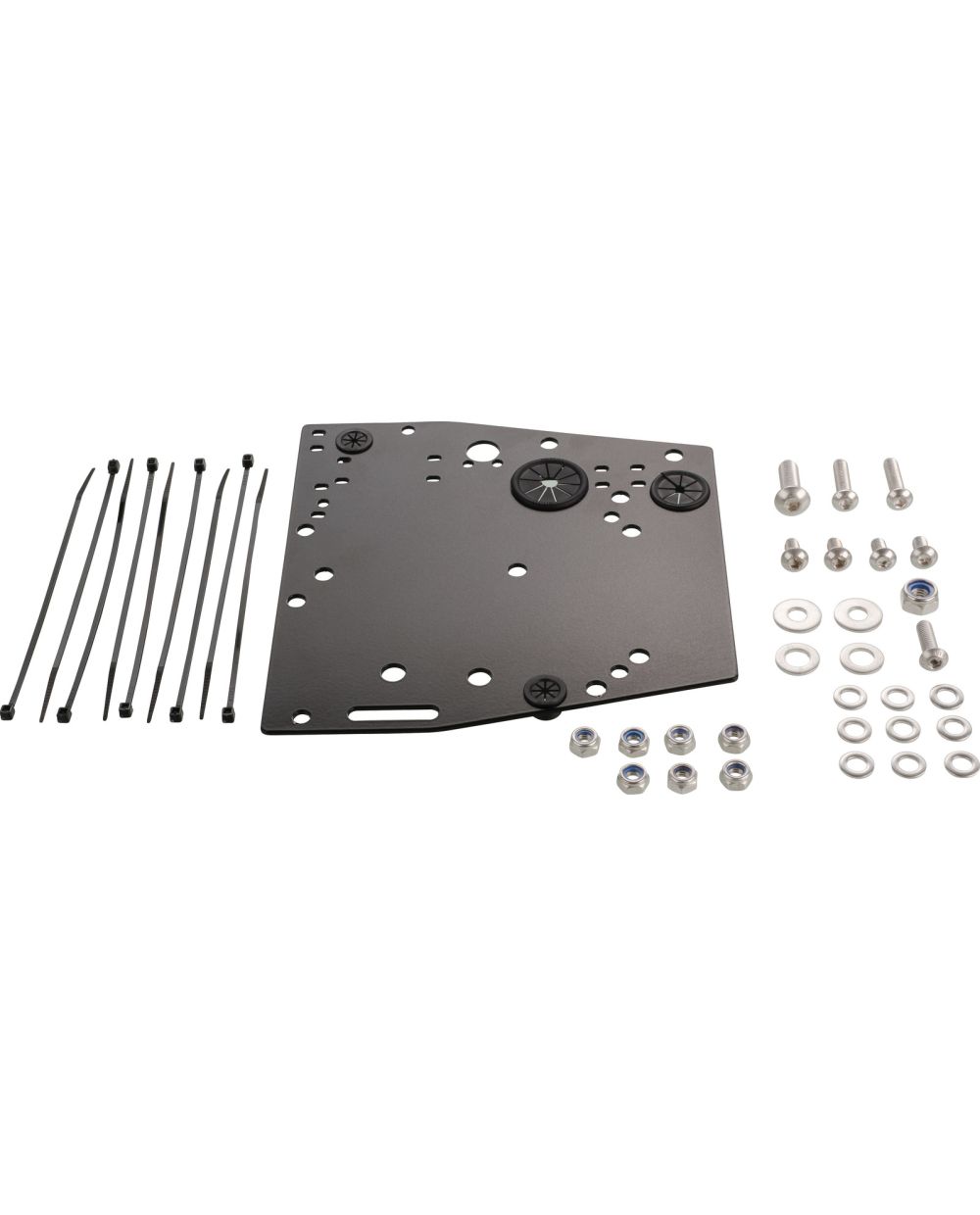

Electronic System 'Evolution', alu black coated, electrical mounting plate for free frame triangle, mounting holes for standard- or Motogadget components

Application: Yamaha SR500


SR500 'Evolution' Electrical System Plate

The electronics system forms the electronic heart of your conversion, allowing all components to be routed under the seat in a structured and inconspicuous manner. Thanks to its modular design, the conversion part can be used to implement a wide range of wiring looms.

  • Unobtrusive installation of the electrical components
  • A wide range of wiring looms can be implemented - including mounting holes for Motogadget m-unit, m-look and m-relay
  • Designed for capacitor or external battery
  • Well thought-out design for optimum structure of the electronics
  • Includes comprehensive mounting material and instructions
  • The base plate is screwed to the attachment points of the air filter/battery box

Possible components:

  • OEM voltage regulator
  • OEM CDI
  • Fuse holder item 40348
  • Flasher relay:
  • SR500 -'92: item 41620

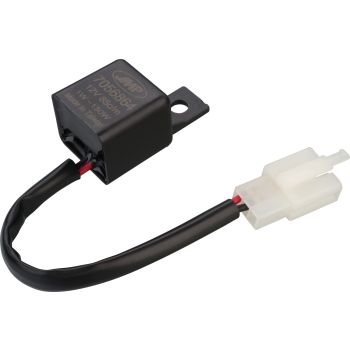

  • SR500'93-: Item 41359
  • Universal with indicator control light, problem solver for LED indicators: Item 41340/41621
  • Motogadget Mini item 41194
  • Motogadget m-Unit: Item 41622
Availability:
In stock

Last update stockinfo: 27.02.2024 17:52

€29.90
Incl. 19% VAT,excl. Shipping Cost
More Information
Motorcycle ApplicationYamaha SR500
KEDO Catalog

Find this part on page 469 in our current catalog:

Delivery time (days) from availability3-6
Listed since17.04.2020
Brand/ManufacturerKEDO
Manual
Download PDF
EAN/GTIN4260638677142
Stock - last update27.02.2024 17:52
