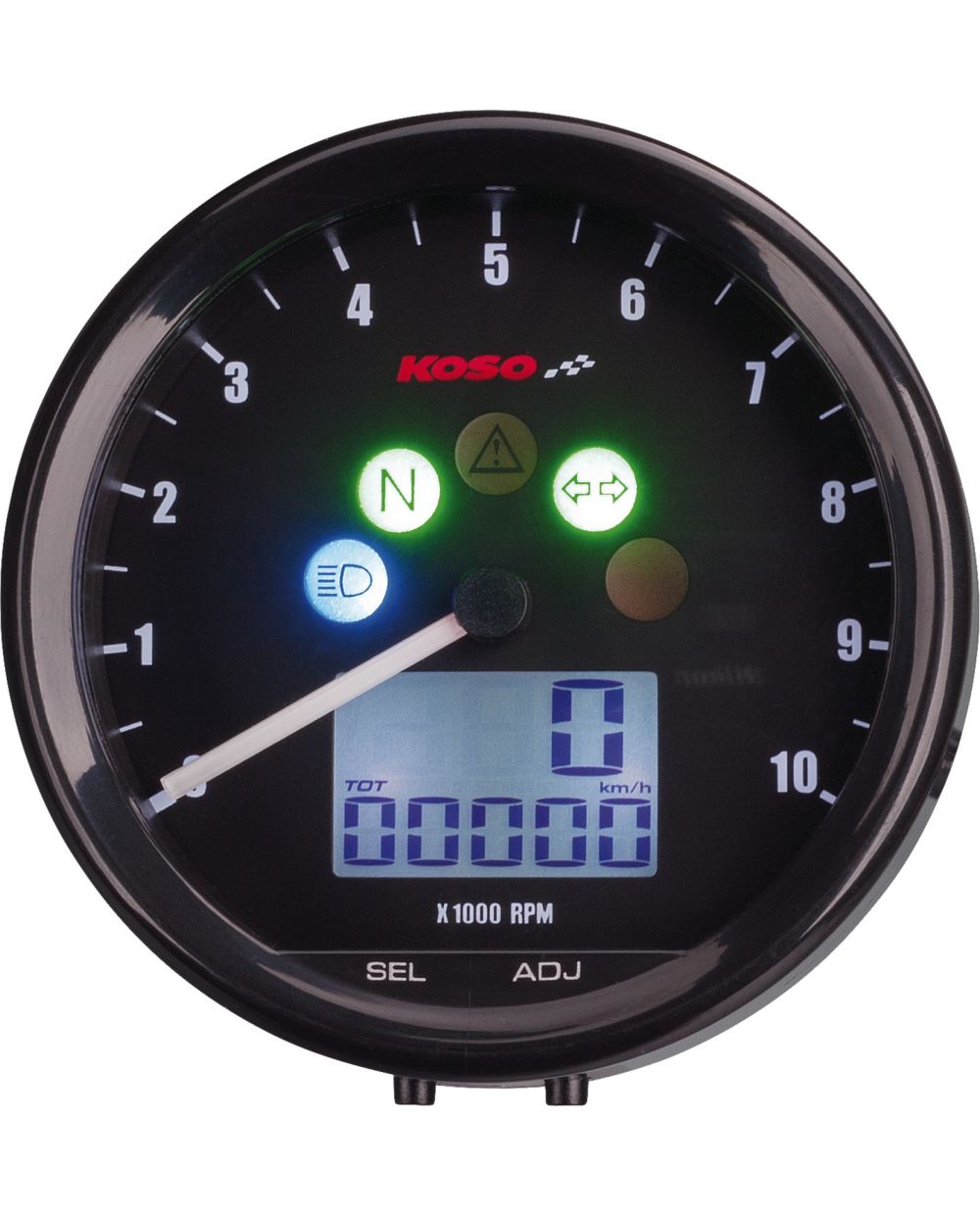

KOSO All-In-One Speedometer 'TNT' 12V, analog displayed tachometer, digital speedometer, 5 pilot lights, white displ. illum., 'E'-approved

KOSO All-In-One Speedometer

• Tachometer with analogue optics including embedded digital speedometer and 5 pilot lights, Ø 64 mm
• Adjustable white LED backlight

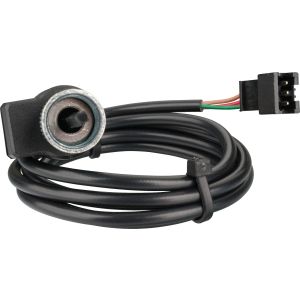

• For SR500 we recommend the speedometer pick-up item 40427-2
• Suitable for 12 V on-board power supply, with type approval

Data:

Mounting diameter approx. 64mm
Total height approx. 53,6mm
Ornamental ring diameter approx. 68,45mm; height approx. 15,2mm
Diameter of display approx. 57mm
Screw spacing (centre distance) approx. 45mm; length of thread approx. 18mm M5
