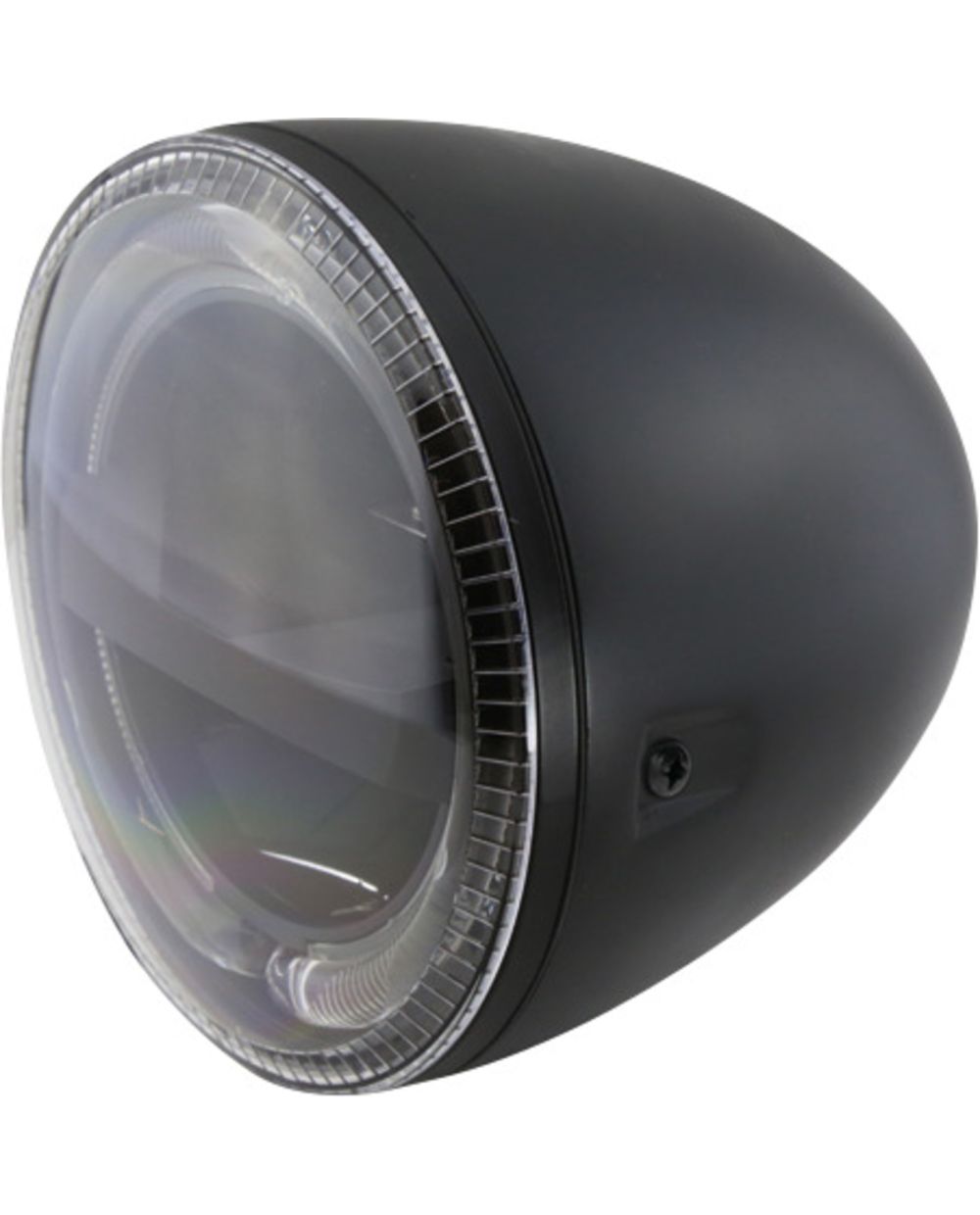

LED Headlight 5 3/4', daytime running and parking light, black metal housing, side mounting, dim. approx. depth 167mm, insert diam. 146.5mm

Universal LED main headlight 5 3/4 inch

• LED headlight with daytime running light and parking light function
• In high-quality metal housing with M6 fastening on side
• Dimensions: Diameter of headlight insert: 146.5 mm; depth: 167 mm with lens, connections: 12.5 volts DC

Pin assignment:

• Green cable = ground
• White cable = low beam
• Blue cable = high beam
• Brown cable = parking light
• Red cable = daytime running light

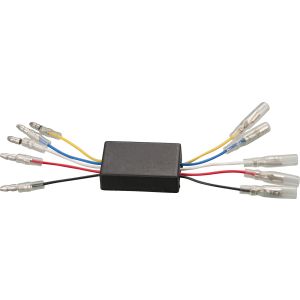

Note: If the vehicle is not already equipped with these lights at the factory, the control box item no. 41356 and an on/off switch (not a push button) are also required. No. 41356 and an on/off switch (no buttons) are required to switch between low beam and daytime running light as prescribed.
