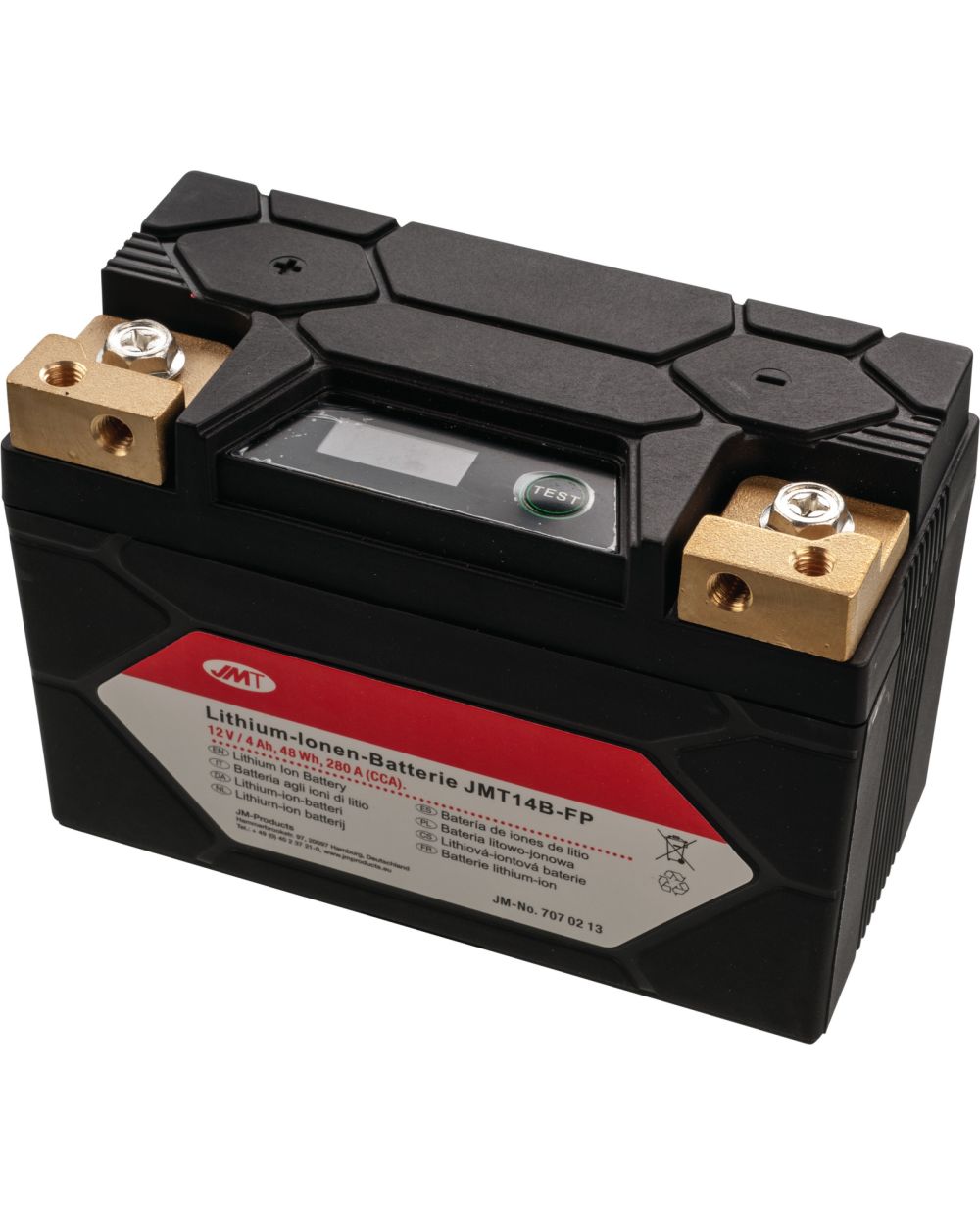

Lithium-Ion Battery JMT14B-FP 12V 48Wh incl. Built-in Voltage Indicator (Volt-Indicator), weight 1.09kg (replaces e.g. YTZ10S,YT12B-BS)

Application: SR250 1980-1983, MT-07 2014-2024, XSR700 2016-2026, MT-09 2013-2026, XSR900 2016-2024, Ténéré700 (XTZ690) -2022, WorldRaid (XTZ690) 2019-, TDM850'96- (4TX), TDM900


Lithium-Ion Batteries from JMT

SPACER

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive strip so that the battery fits exactly into the battery box.

WATERPROOF

The battery is completely waterproof and will not be damaged if the motorbike is cleaned under high pressure.

INDICATOR

All batteries are equipped with a battery status indicator. Simply press the test button. The red digital display shows the current voltage. The battery must be charged at the latest when the voltage is below 12.9 V.

Replacing a standard lead-acid battery with a JMT lithium-ion battery can save up to 5 kg in weight without any significant effort.

The following advantages speak in favour of JMT lithium-ion batteries:

• Approx. 1/3 of the weight of the comparable lead-acid battery
• Unbeatable cost/weight saving ratio
• Can be installed in any position as they contain no acid
• Contains no heavy metals
• Balanced discharge/charge of all cells through balancer
• Fast charging with high charging current possible
• Very low self-discharge (max. 5% per month)
• Good performance even at high temperatures up to 60°C
• Safe technology and long service life

Due to their specific characteristics, lead-acid batteries can only utilise 30% of their capacity, whereas lithium-ion batteries can utilise almost 100% of their capacity. For this reason, the lithium versions of JMT batteries require only 1/3 of the capacity of a comparable lead-acid battery for the same starting power.
An in-built processor (balancer) also ensures that all cells are evenly charged.
The dimensions of the lithium-ion batteries correspond to the dimensions of the original lead-acid batteries with the help of adapters.
The connections are also identical, which is why the battery can be replaced in just a few minutes without any further adjustments.

Please note that only suitable chargers may be used for charging. The use of a charger with a voltage of more than 14.9 V to charge a deeply discharged battery with less than 9.6 V is not permitted.

The manufacturer guarantees sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium-ion batteries use iron phosphate (LiFePO4) as the cathode material and utilise the lithium polymer process in their manufacture. This means that they cannot burst into flames or explode during normal operation. The technology and manufacturing process ensure the highest safety standard for lithium batteries.

- 12 V maintenance-free lithium-ion battery
- Recommended charging current 2A
- Maximum charging current for fast charging 20A

Comparable in dimensions and connections with:
YTZ10S, YT12B-BS, YT14B-BS, YX14AH-BS, YB10A-A2, YB12A-A, YB12A-B, YB12B-B2, YB12C-A, YB14-A2, YB14-B2, YB14A-A1, YB14A-A2,12N12A-4A-1
